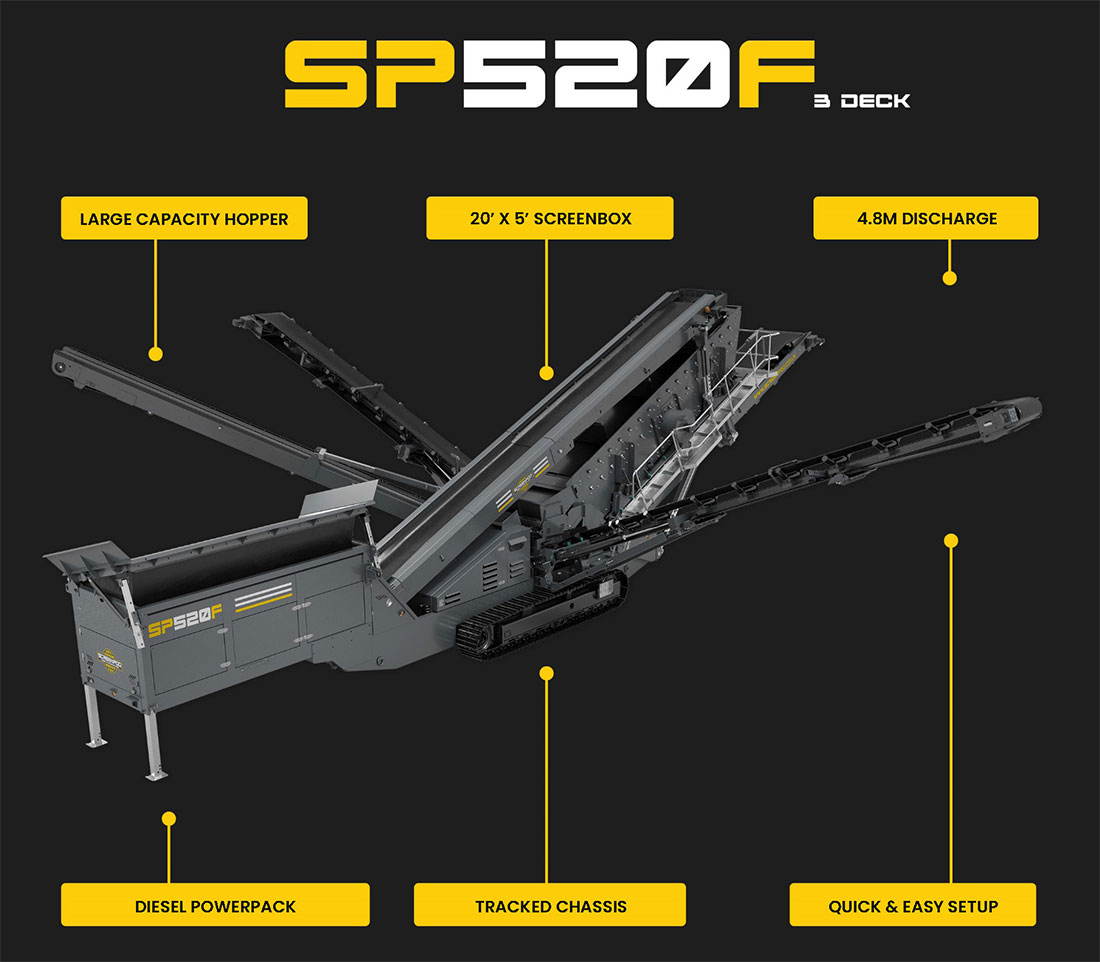

SP520F 3 Deck Incline Finishing Screener
The Screenpod SP520F Finishing Screener is designed to efficiently separate and size materials in a variety of applications.
Equipped with adjustable screens, it effectively removes large debris, fines, and oversized material, ensuring smooth material flow and improved processing efficiency.
Ideal for use in industries such as construction, mining, and aggregate production, the SP520F offers robust performance and versatility, making it an essential tool for pre-screening and material sorting before further processing.
Features & Benefits:
- TIER 3 – CAT 4.4 OR JCB444 DIESELMAX– ROW
- TIER 4F – JCB444 ECOMAX IPU OR STAGE 5 CAT – USA
- STAGE 5 – JCB444 DIESELMAX OR CAT – EU
- HIGH ENERGY 6M X 1.52M (20’X5’) 2 OR 3 DECK SCREEN
- MAX HOPPER CAPACITY OF 6M³
- SCREEN-BOX ANGLE ADJUSTABLE 18-30º
- 3 PIECE END TENSIONED MESH ARRANGEMENT (BOTTOM DECK)
- 5 PIECE SIDE TENSIONED MESH ARRANGEMENT (TOP AND SECOND DECK)
- SCREEN-BOX AND TAIL CONVEYOR LOWERS TO ALLOW MESH CHANGE
- VARIABLE SPEED 4 PLY BELT FEEDER
- VARIABLE SPEED MAIN AND SIDE CONVEYORS
- RADIO REMOTE TIPPING GRID
Options:
- SCREEN DECKS – MESH, PIANO WIRE
- 2 OR 3 DECK SCREEN
- RINSER SCREEN AND CATCHBOX
- 2 DECK VIBRATING GRID
- TIPPING GRID
- RADIO REMOTE CONTROL
- DUST COVERS
- ANTI – ROLL BACK
- OVERBAND MAGNET
Weight:
- 2 DECK – 33,000 KG
- 2 DECK W/ LIVEHEAD – 38,500 KG
- 3 DECK – 37,500 KG
- 3 DECK W/ LIVEHEAD – 43,000 KG
