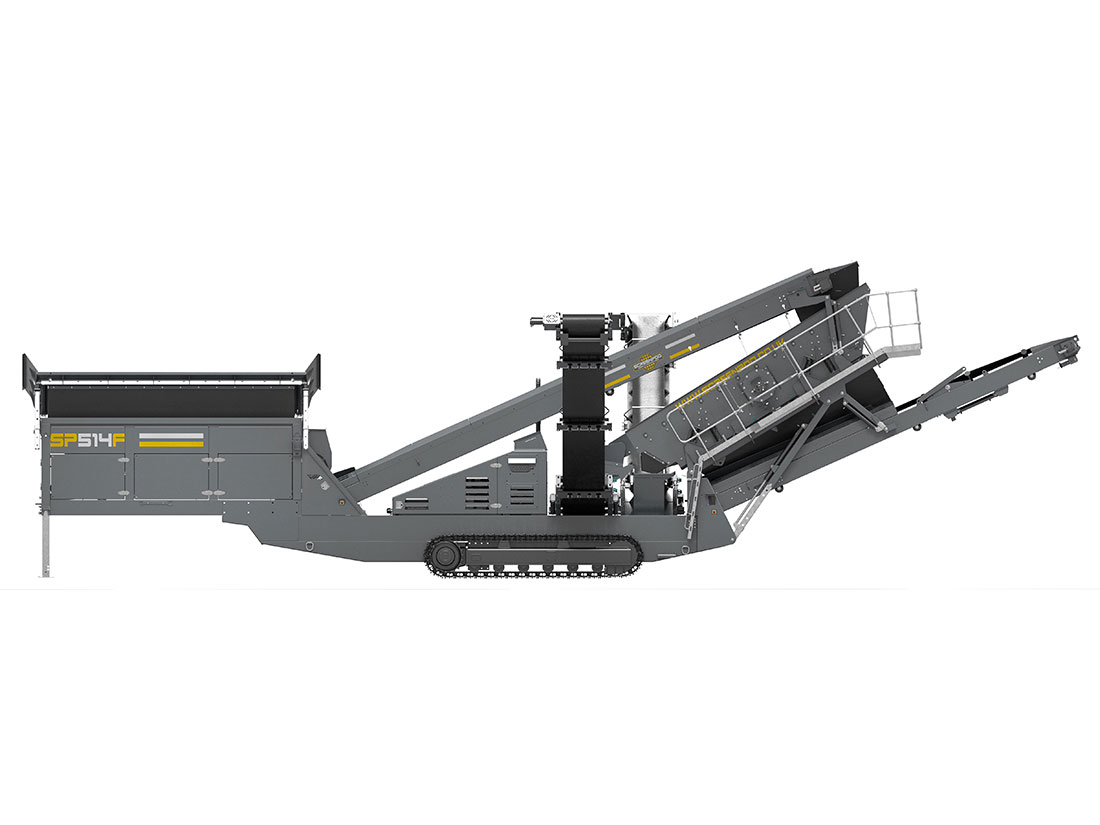

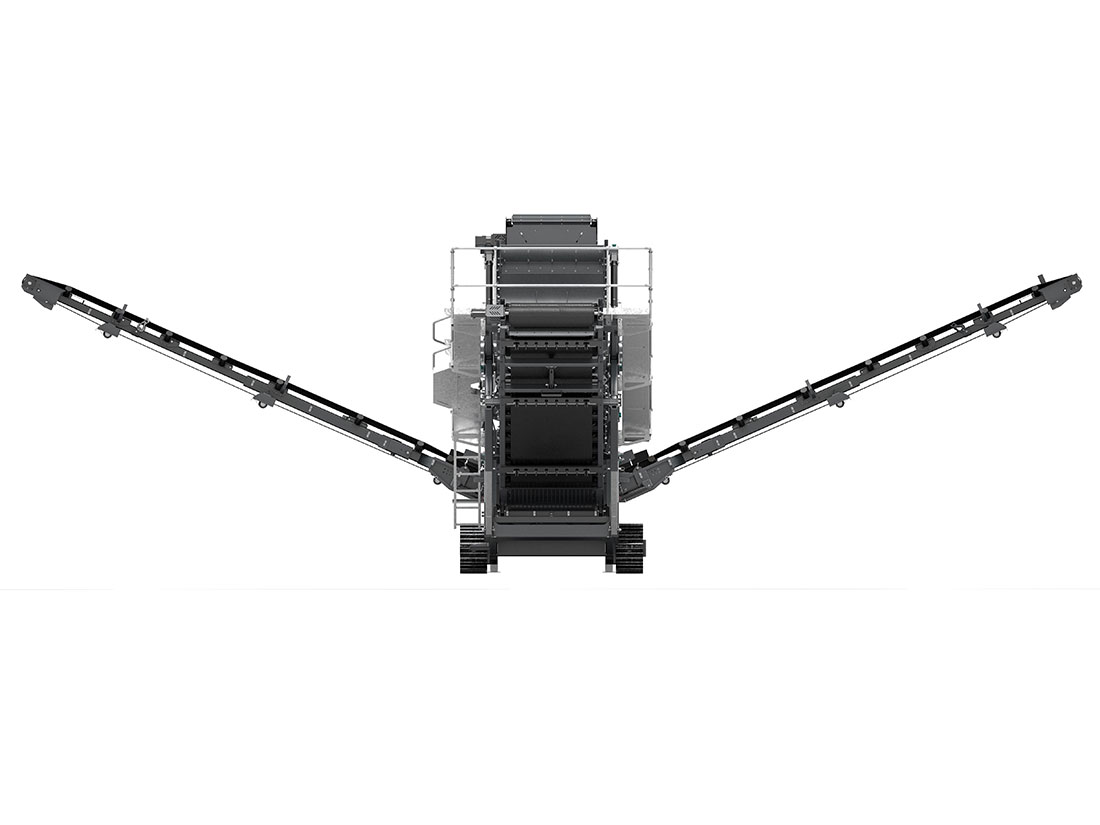

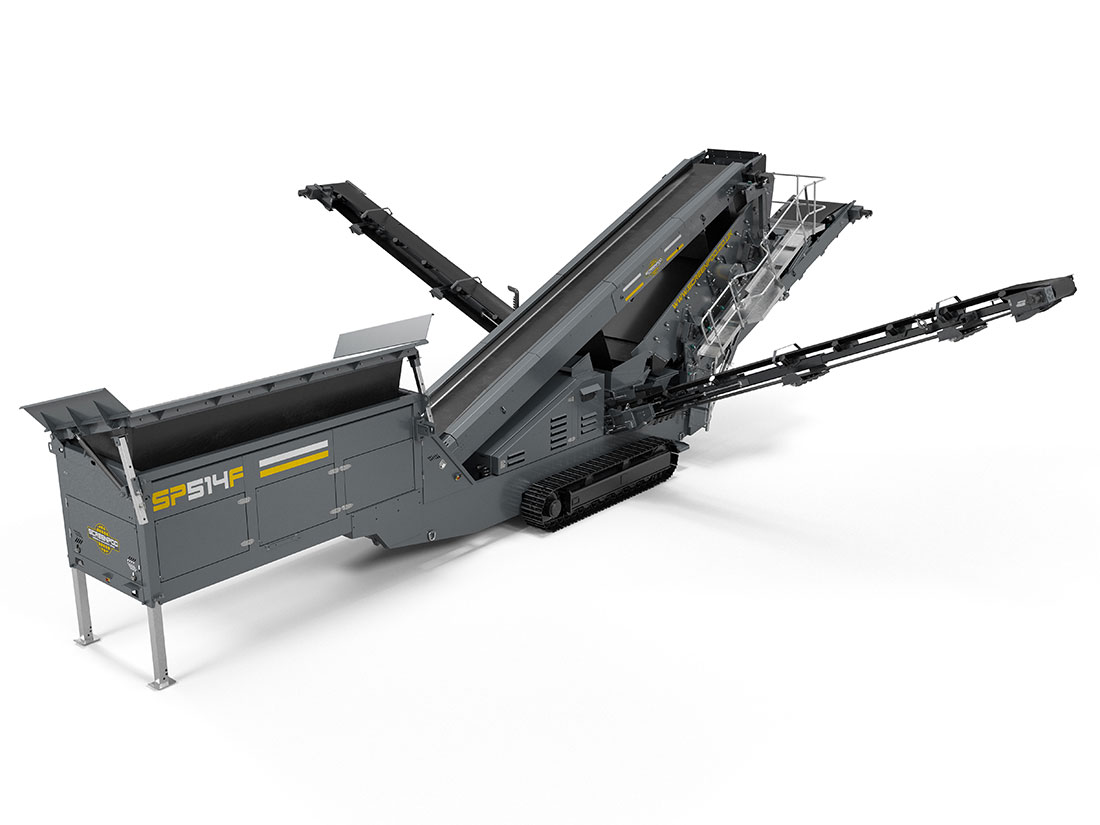

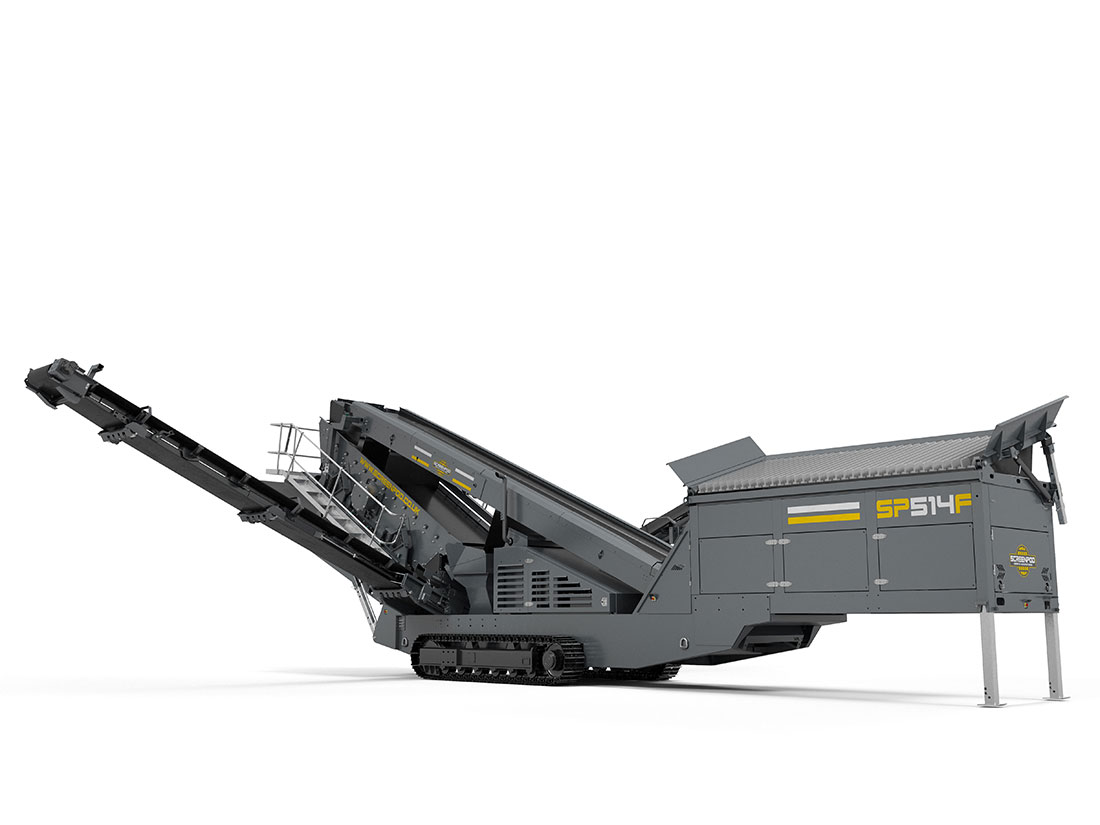

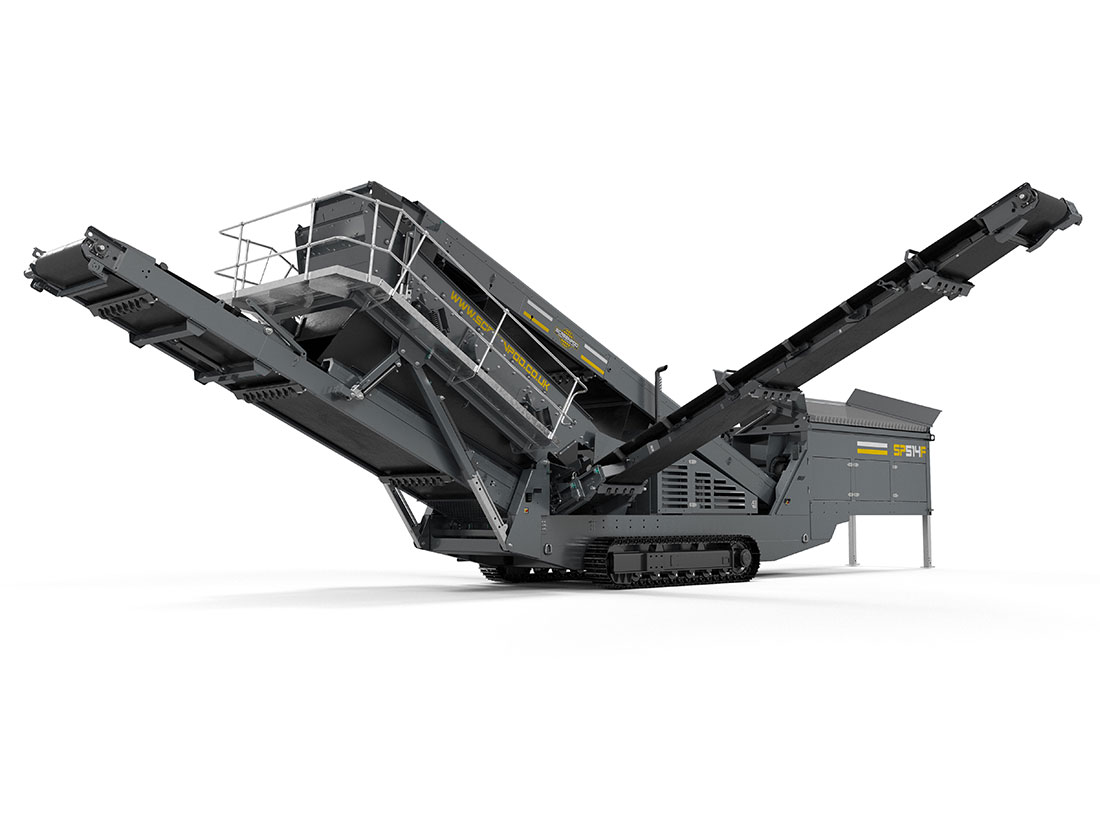

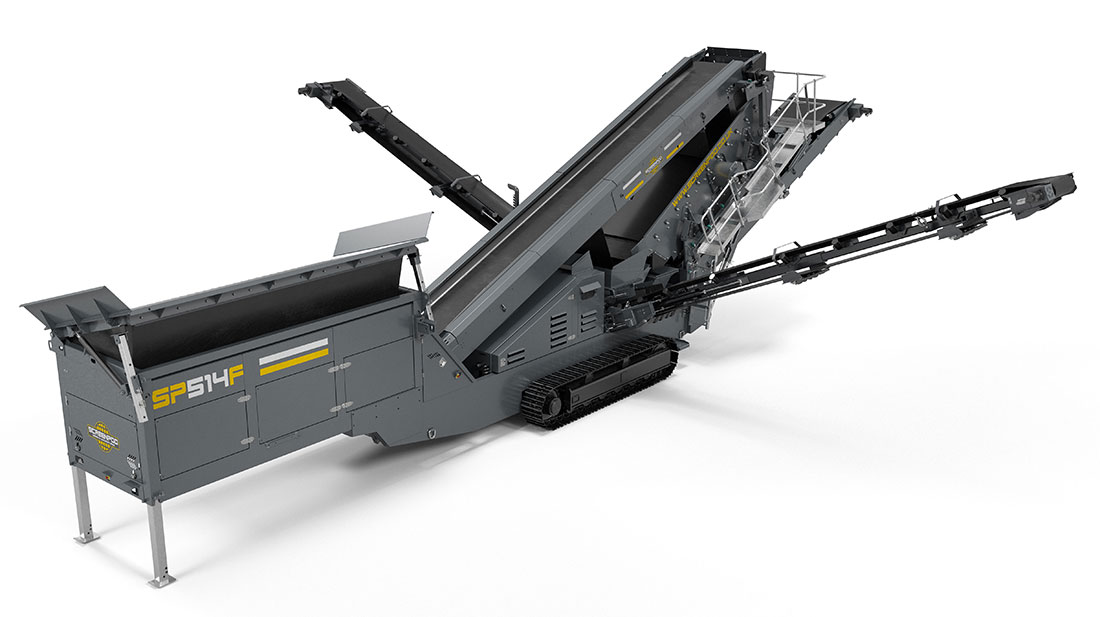

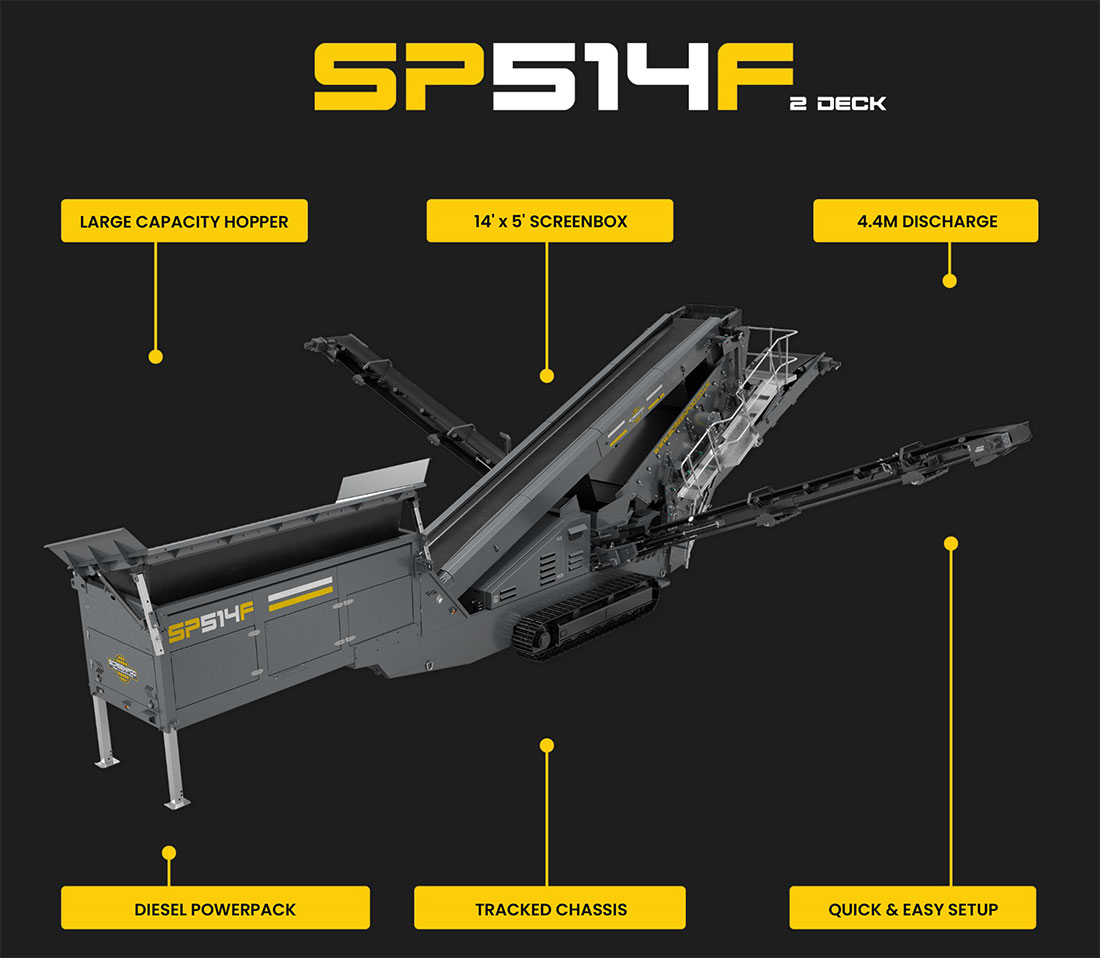

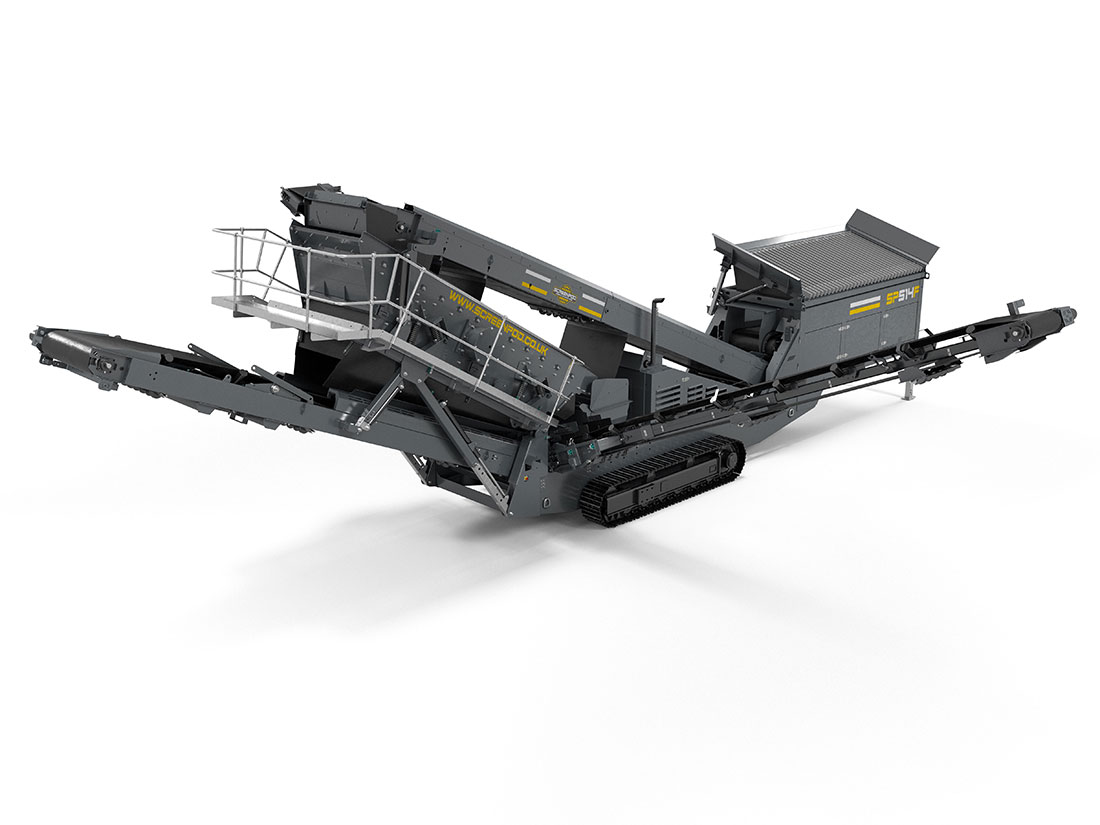

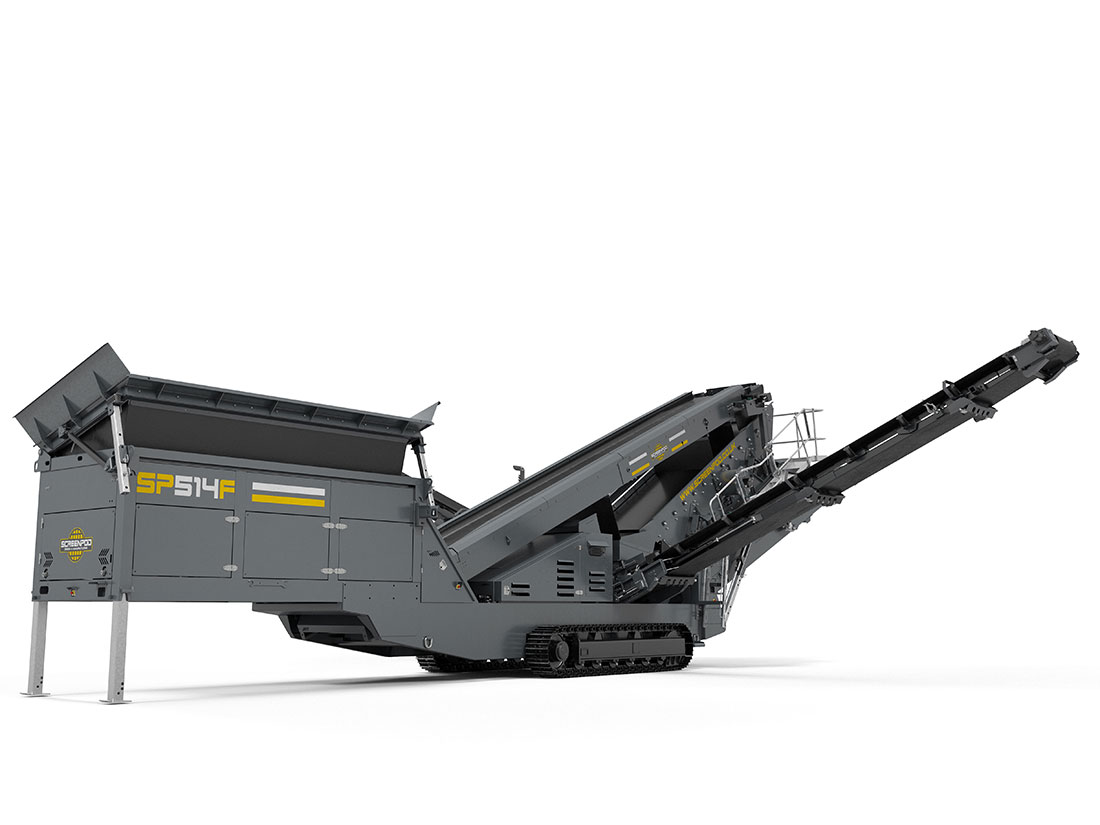

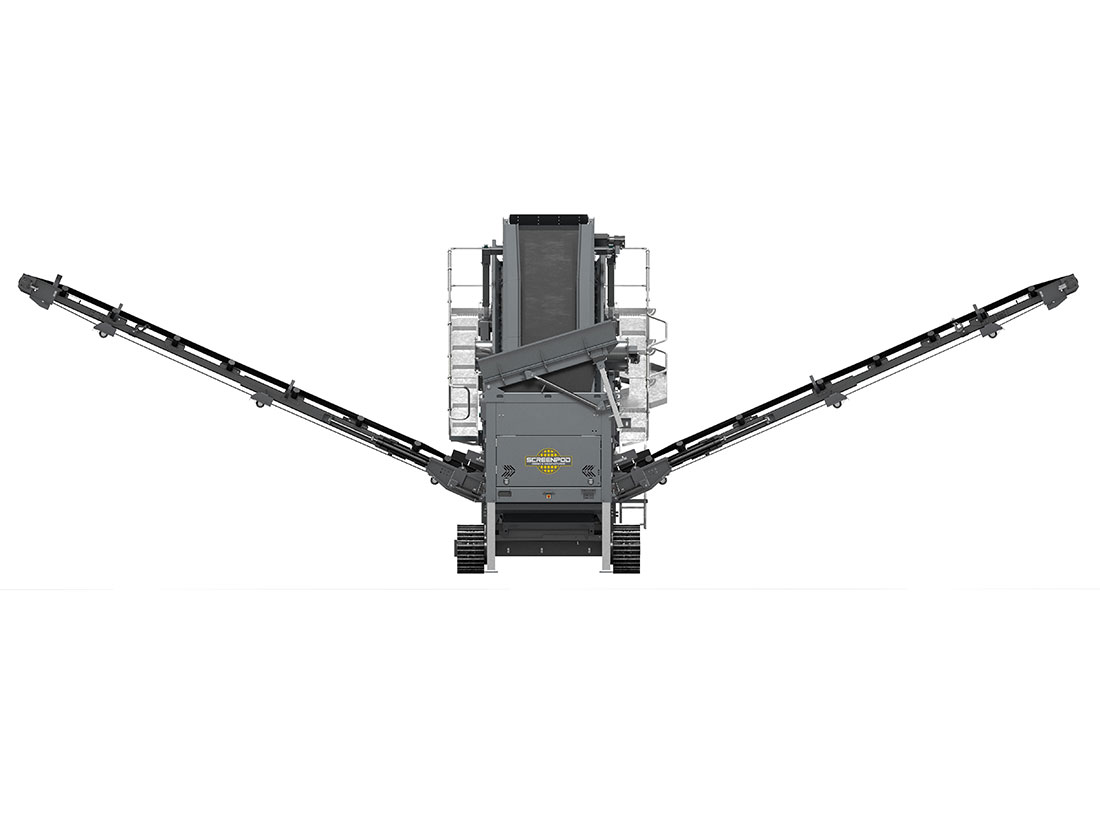

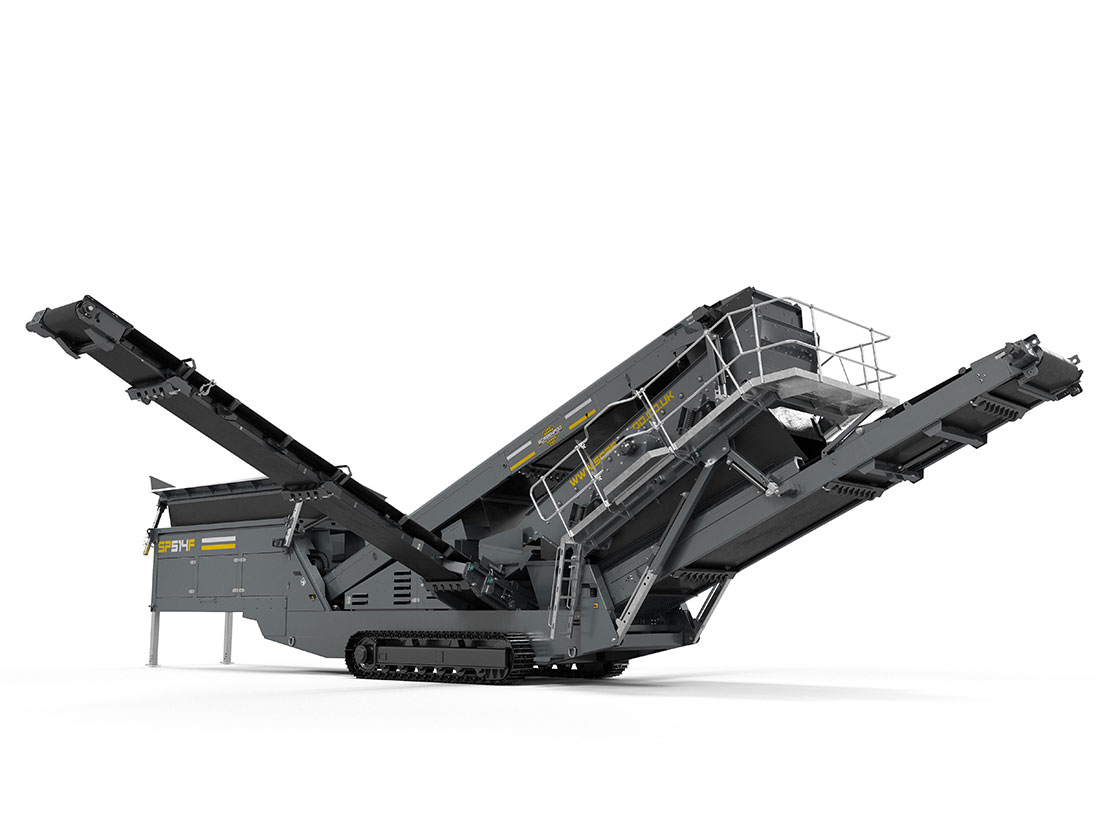

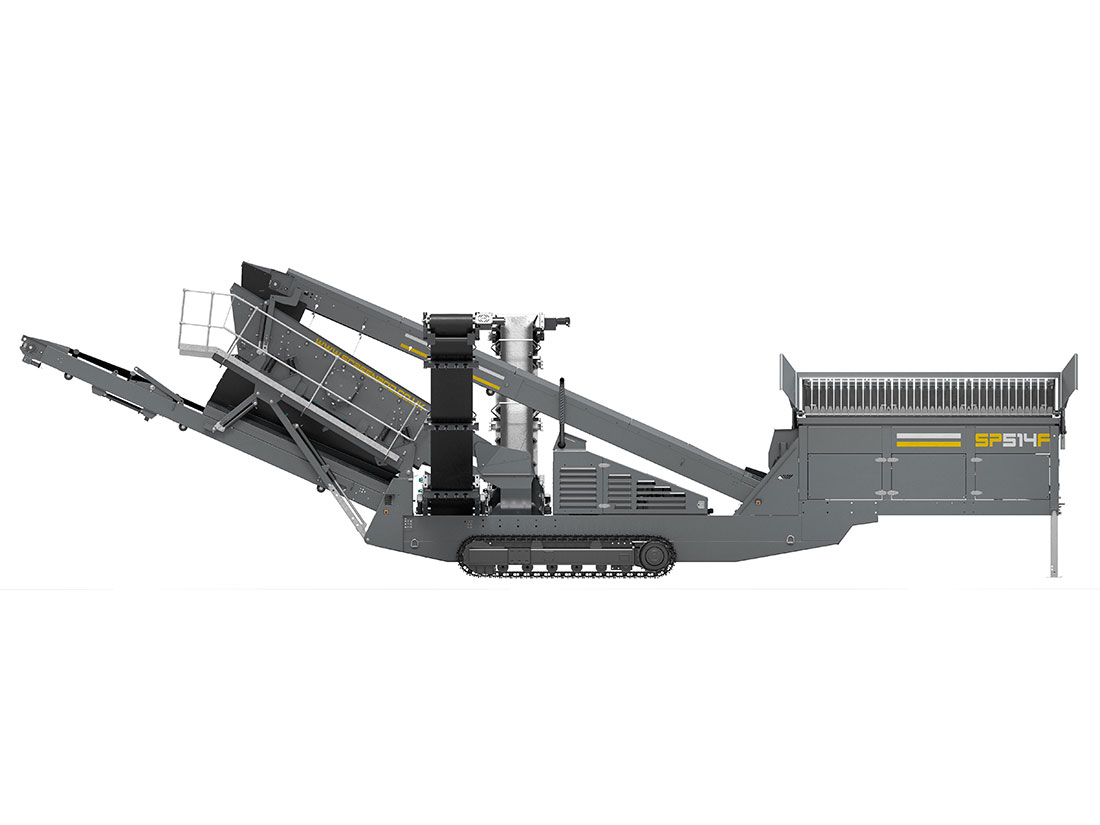

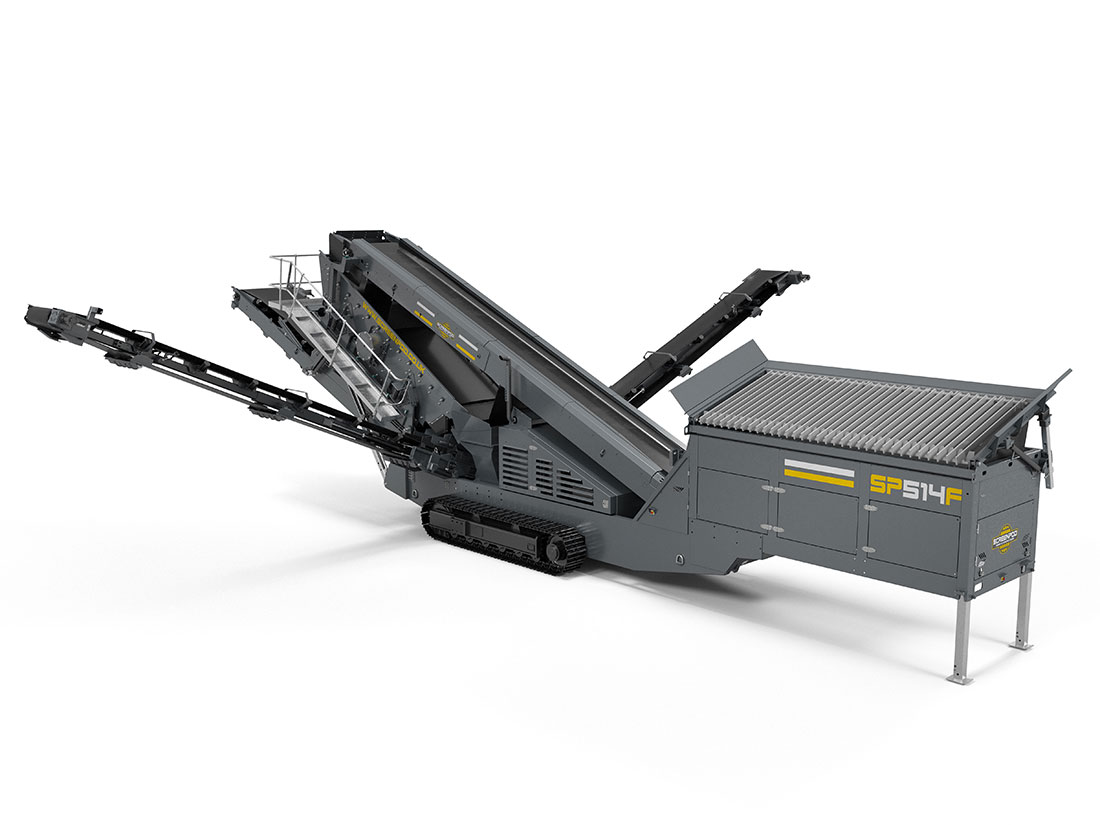

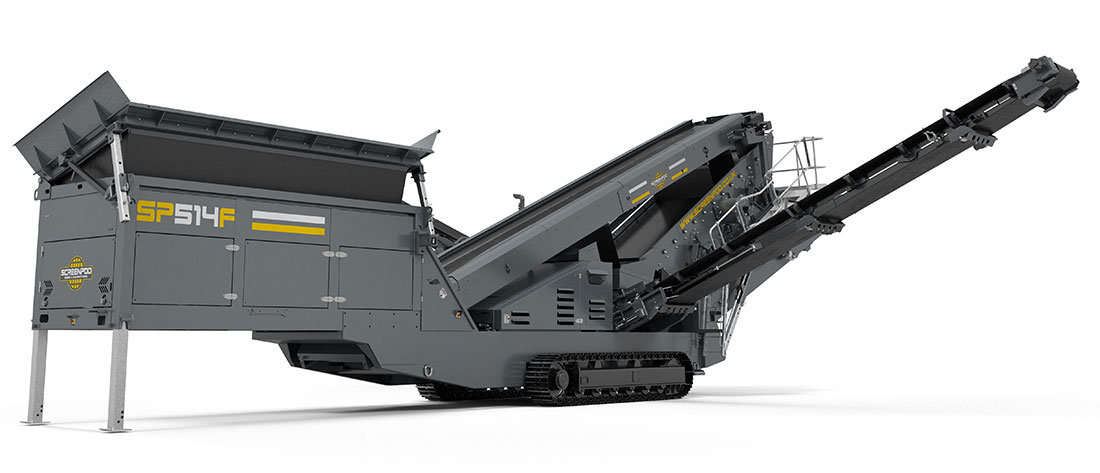

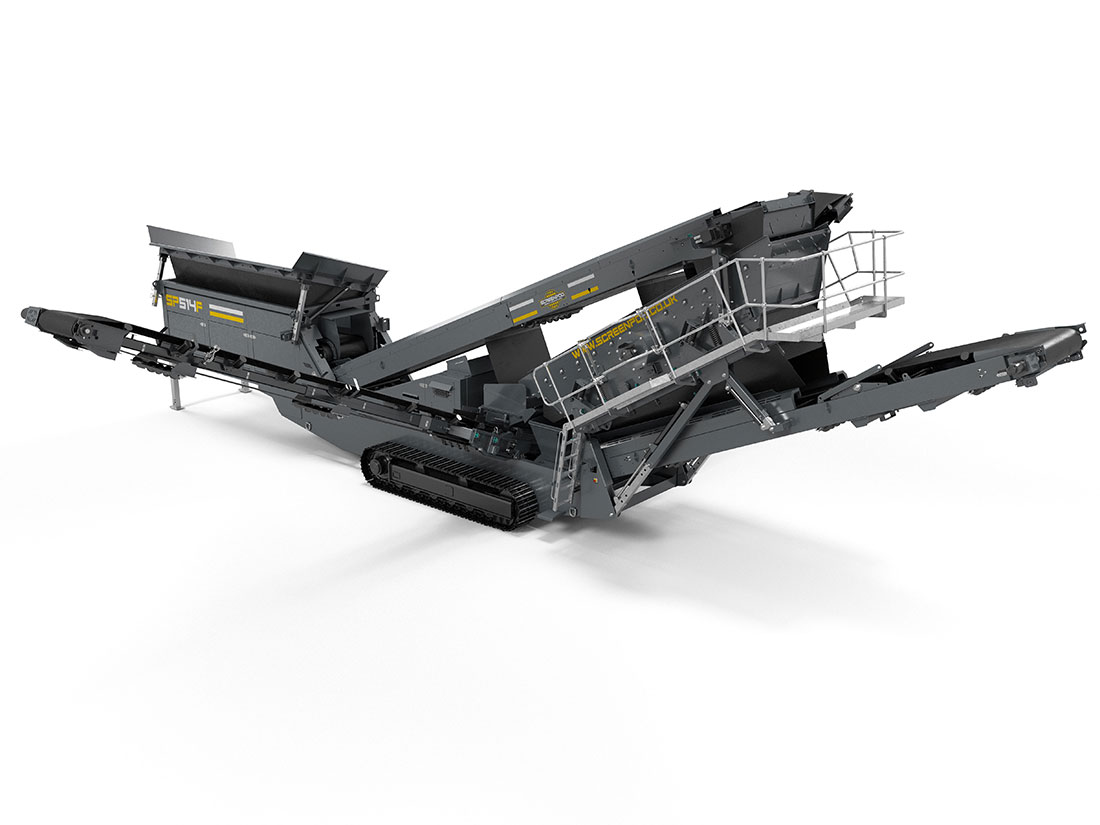

SP514F 2 Deck Incline Finishing Screener
The Screenpod SP514F Finishing Screener is designed to efficiently separate and size materials in a variety of applications.
Equipped with adjustable screens, it effectively removes large debris, fines, and oversized material, ensuring smooth material flow and improved processing efficiency.
Ideal for use in industries such as construction, mining, and aggregate production, the SP514F offers robust performance and versatility, making it an essential tool for pre-screening and material sorting before further processing.
Features & Benefits:
- TIER 3 – CAT 4.4 OR JCB444 DIESELMAX– ROW
- TIER 4F – JCB444 ECOMAX IPU OR STAGE 5 CAT 3.6 – USA
- STAGE 5 – JCB444 DIESELMAX OR CAT 3.6 – EU
- HIGH ENERGY 4.33M X 1.52M (14’X5’) 2 OR 3 DECK SCREEN-BOX
- 3 PIECE SIDE TENSIONED TOP AND SECOND DECK
- 2 PIECE END TENSIONED BOTTOM DECK
- HOPPER CAPACITY OF 6M³ MAX VOLUME OF 8M³
- SCREEN-BOX ANGLE ADJUSTABLE 22-34º
- SCREEN-BOX WALKWAYS FOR EASE OF MAINTENANCE AND MESH CHANGE
- VARIABLE SPEED 4 PLY BELT FEEDER
- REVERSIBLE TRANSFER BELT ON 3 DECK SCREEN
- VARIABLE SPEED ON ALL STOCKPILE BELTS
Options:
- 2 OR 3 DECK FULL RINSER SCREEN AND CATCH-BOX
- SCREEN DECKS – MESH, PIANO WIRE
- 2 DECK VIBRATING GRID
- TIPPING GRID
- RADIO REMOTE CONTROL
- OVERBAND MAGNET
- DUST COVERS
- ANTI – ROLL BACK
Weight:
- 2 DECK : 26,500KG – 2 DECK W/ LIVEHEAD 31,000 KG
- 3 DECK : 28,500 KG – 3 DECK W/ LIVEHEAD 33,000 KG
