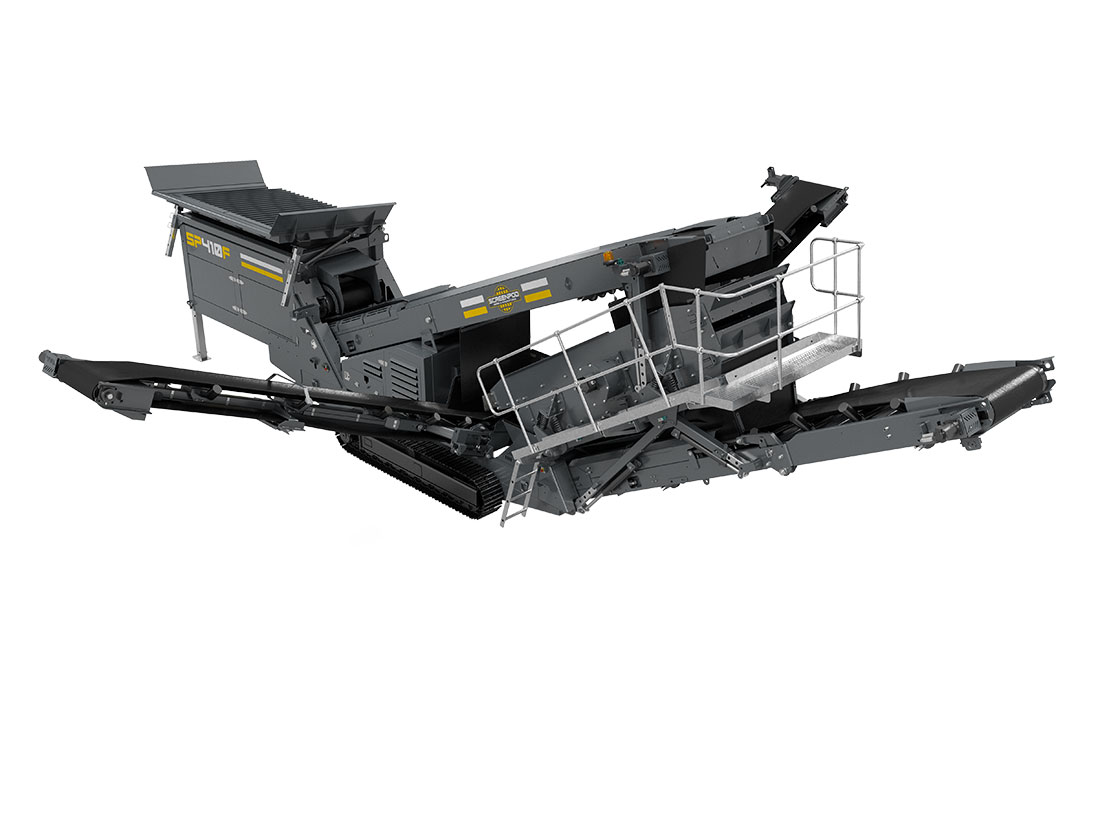

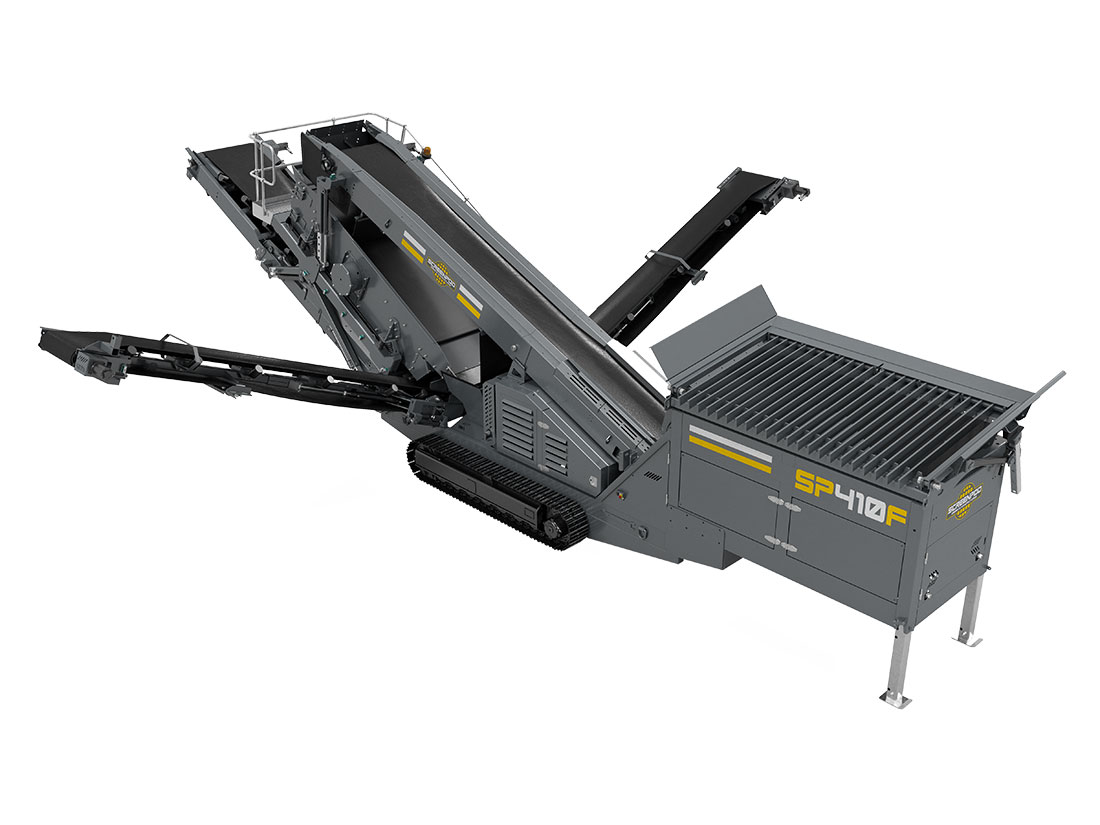

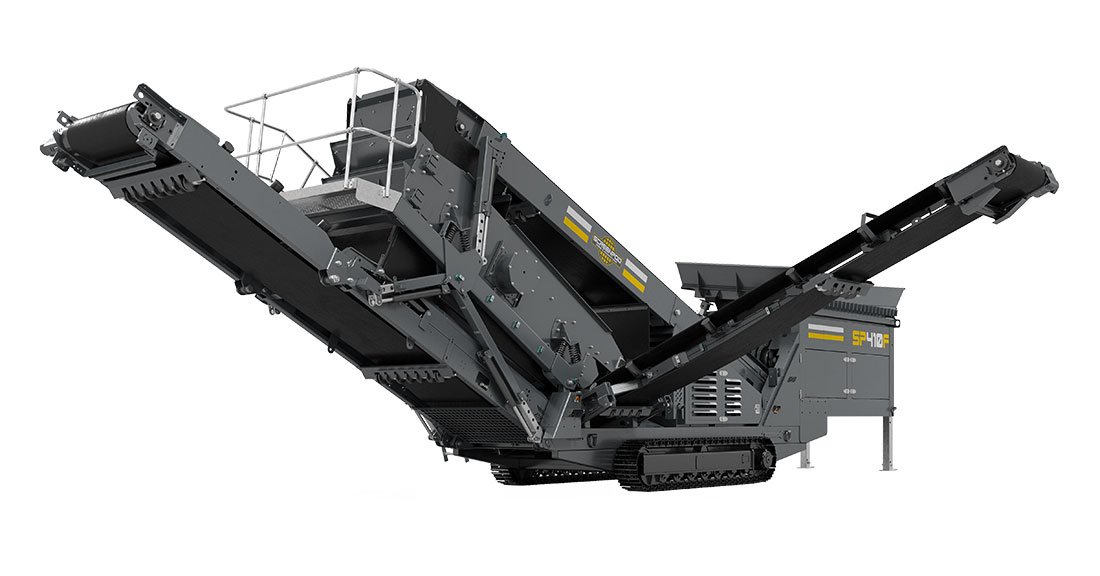

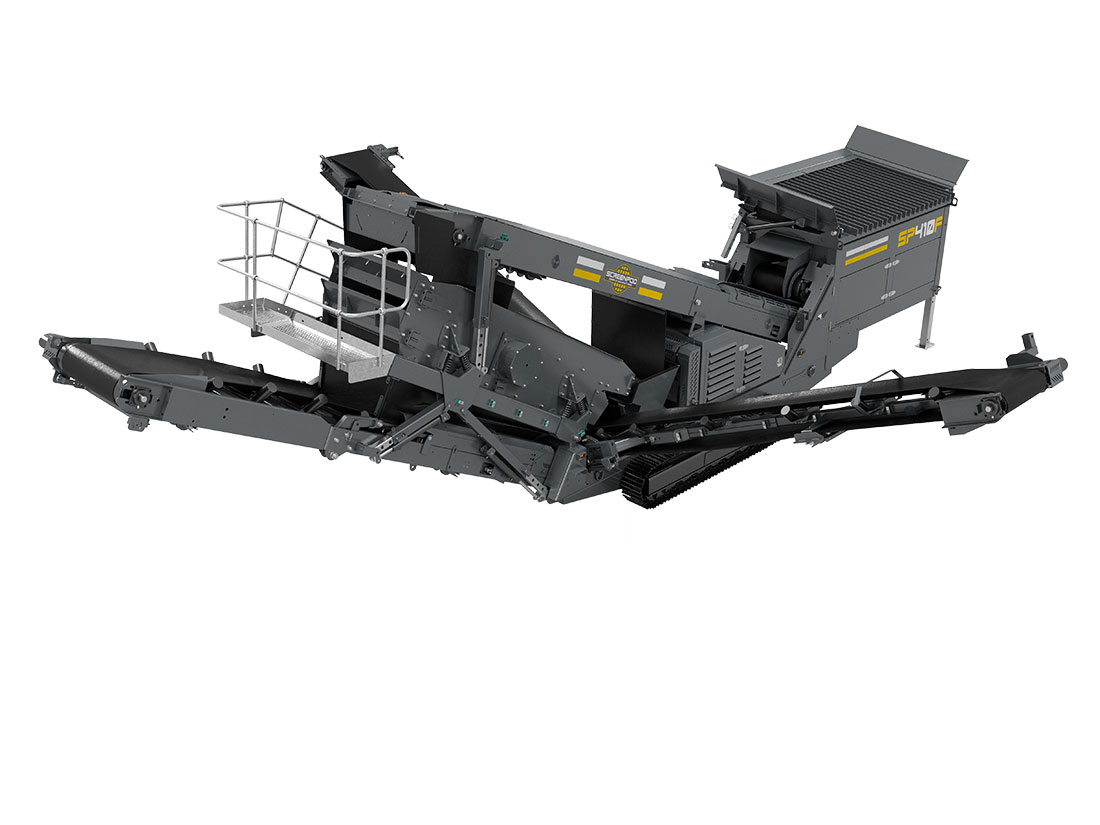

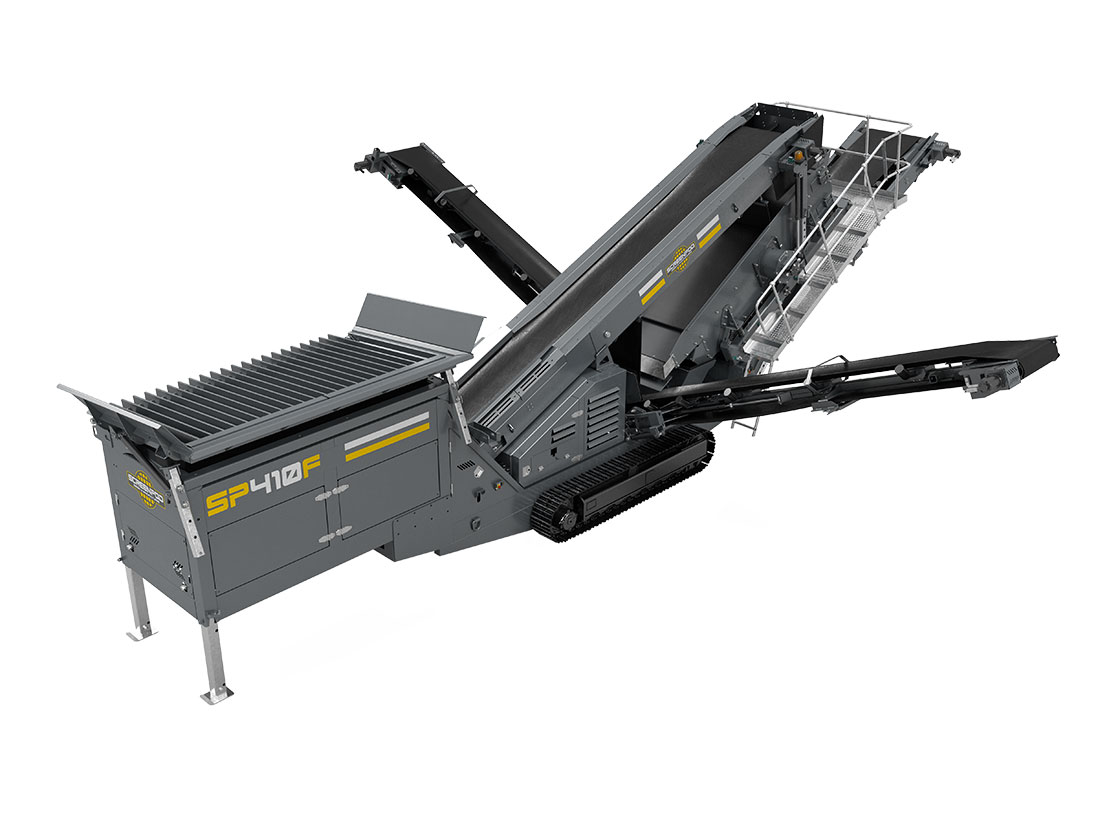

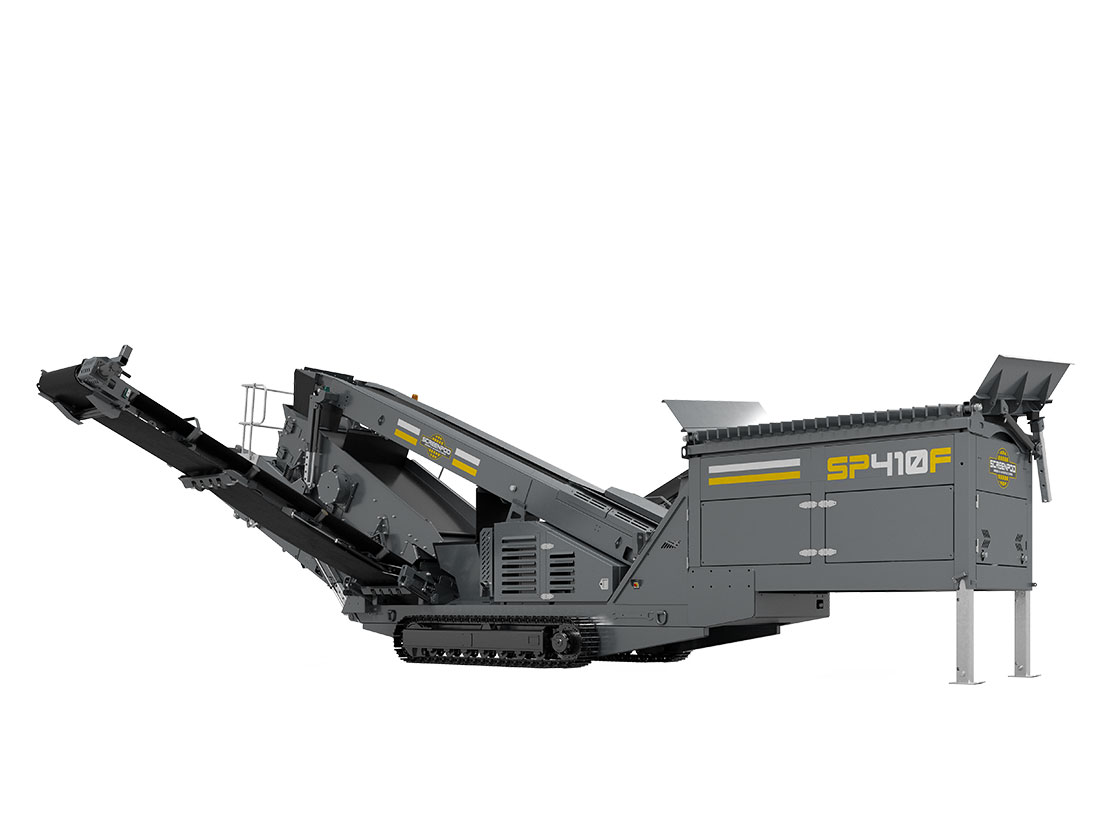

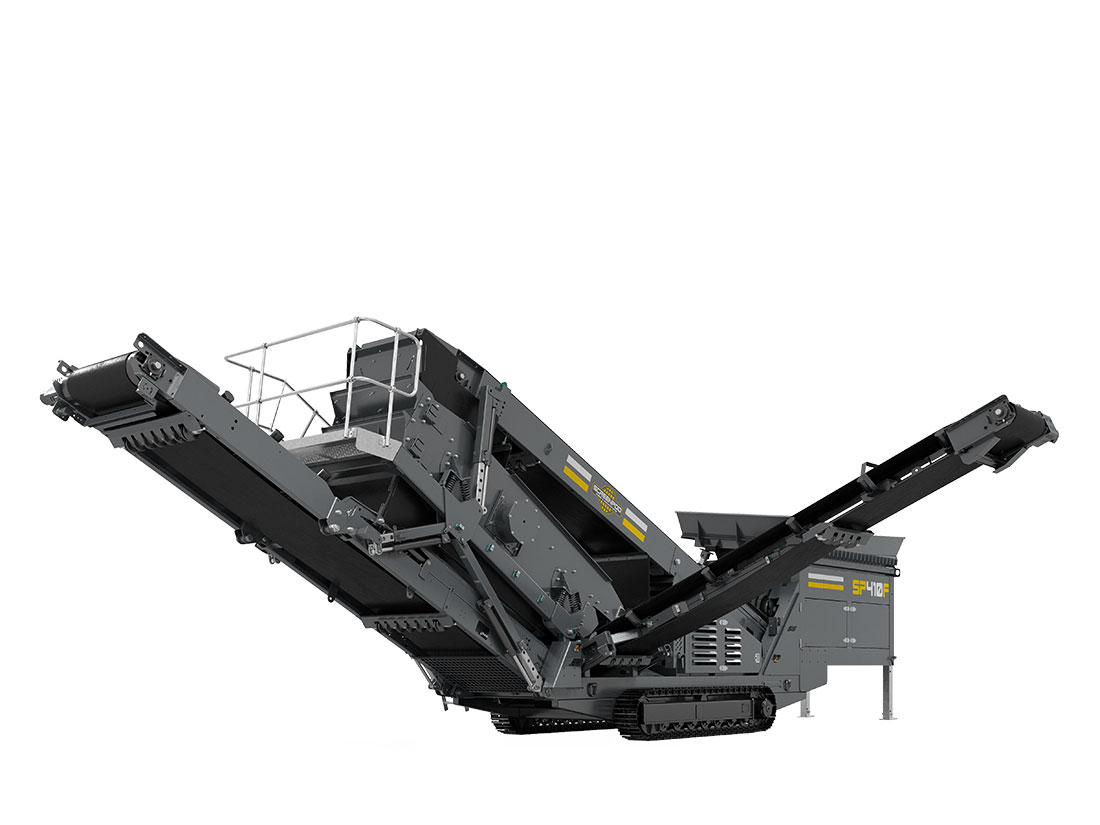

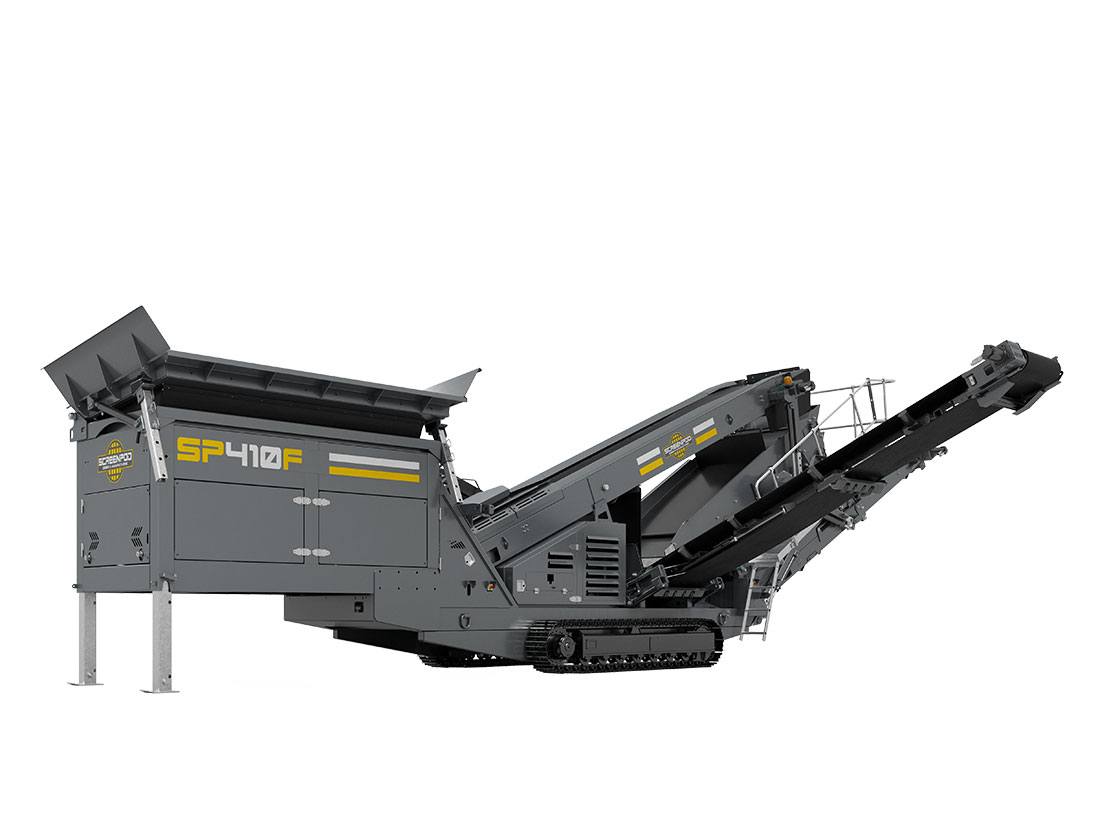

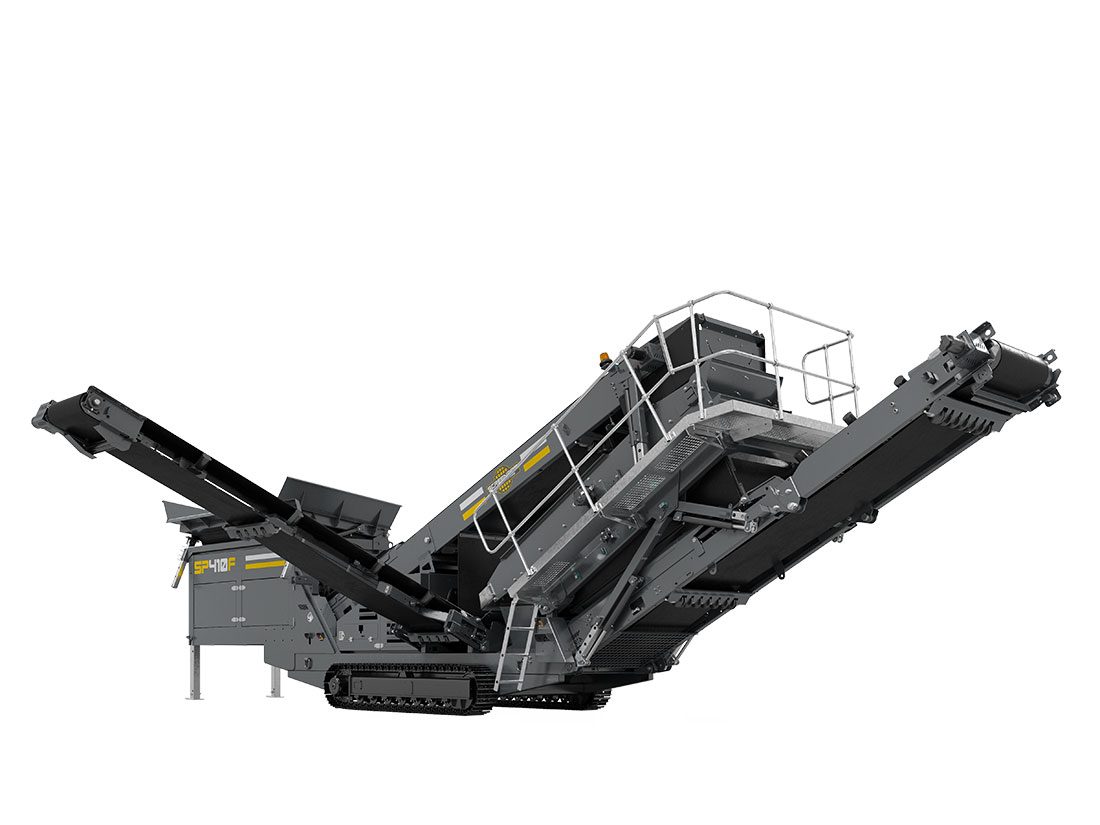

SP410F Finishing Screener
The Screenpod SP410F Finishing Screener is a compact screen allowing flexible movement around any fine screening application.
The SP410F is compact and economical to run and can screen / stockpile 3 products at up to 200TPH. Complete with a 10 x 4 2 deck screen box, a 14ft feed hopper, main conveyor and 3 hydraulically folding stockpiling conveyors. The screen extremely easy to track around sites and can be commissioned within 20 minutes of arrival on site.
Features & Benefits:
- TIER 3 – T.DEUTZ 2011 OR JCB444 DIESELMAX– ROW
- TIER 4F – JCB444 ECOMAX IPU OR STAGE 5 CAT – USA
- STAGE 5 – T.DEUTZ 2.9 L4 / CAT / JCB444 DIESELMAX – EU
- HIGH ENERGY 3M X 1.2M (10’X4’) 2 BEARING SCREEN-BOX – 2 DECKS
- MAX HOPPER CAPACITY OF 5.8M³
- SCREEN-BOX ANGLE ADJUSTABLE 28-36º
- FULLY ADJUSTABLE SPREADER PLATE FOR OPTIMUM SCREENING
- END TENSIONED MESH ARRANGEMENT
- SCREEN-BOX AND TAIL CONVEYOR LOWERS TO ALLOW MESH CHANGE
- VARIABLE SPEED 3 PLY BELT FEEDER
- VARIABLE SPEED MAIN AND SIDE CONVEYORS
- RADIO REMOTE TIPPING GRID
Options:
- SCREEN DECKS – MESH, PIANO WIRE
- TIPPING GRID REMOVED
- HOPPER EXTENSIONS
- RADIO REMOTE CONTROL
- DUST COVERS
- ANTI – ROLL BACK
Weight:
- 15,500 KG
